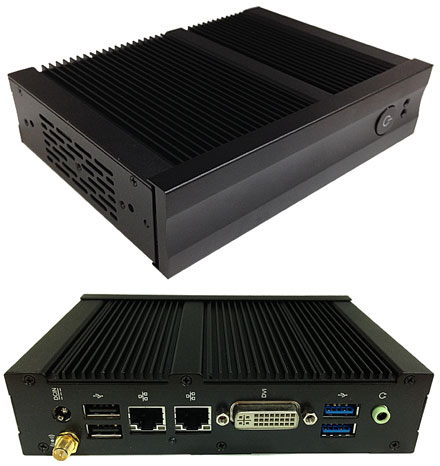

Jetway JBC365F3A-2930-B (Intel Bay Trail-M)

Jetway JBC365F3A-2930-B (Intel Bay Trail-M)

  • INTEL® Bay Trail-M N2930 SoC Processor
  • 1 * SO-DIMM solt (Max 4GB)
  • 2 * Mini PCIE slot
  • 2 * RTL8111G PCI-E Gigabit LAN
  • Realtek ALC662 HD Audio CODEC with 2-Channel
  • Support 1 * 2.5” SATA Device (Max Height 9.5 mm)
  • Support 1 * m-SATA SSD Device (Mini PCI-E)
  • 1 * USB 3.0 port
  • 3 * USB 2.0/1.1 ports
  • 2 * RJ-45 ports(Gigabit LAN)


Share

369.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)
Add to cart
RAM :

SSD (mSATA):

SSD (2.5"):

Build/Install:
Motherboard Specification
CPU Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP
Intel® Celeron N2807 SoC, 1.58GHz – 2.16GHz Burst, Quad-Core, 1MB, 4.5W TDP/3.0W SDP
Memory 1 * 204-pin DDR3L-1333 SO-DIMM up to 4GB
VGA Intel HD Graphics, 313MHz - 854MHz
LAN 2 * Realtek RTL8111G PCI-E Gigabit LAN
Audio Realtek ALC662 HD Audio
Storage / Drive Bay 1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD
1 * Shared mSATA/mini-PCI Express Combo slot (Full-size)
Wireless / Mini-PCIE Slot 1 * Mini-PCI Express slot (Half-size)
Wireless 802.11 b/g/n
USB Embedded 1 * USB 3.0 and 5 * USB 2.0
Form Factor 3.5" SBC (148mm x 102mm)
Chassis Specification
Product size 152.6 (W) x 110 (D) x 34.8 (H) mm
Color Black
HDD 1 * 2.5" Hard Disk Drive Bay (Only support SATA 2.5" HDD)
Front I/O Port 1 * Power Button
1 * Power LED
2 * HDD LED
Rear I/O Port 1 * USB 3.0 ports
3 * USB 2.0 ports
2 * RJ-45 ports
1 * DVI-I port
1 * SMA Connector for WiFi Antenna
1 * Line Out jack
1 * +9V ~ +24V DC-in jack
Other Internal Headers These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses.
1 * USB Headers for up to 2 * USB 2.0 ports
1 * 24-bit dual channel LVDS connector/inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)
1 * Serial Port Header (RS232/422/485)
1 * 8-bit GPIO header
1 * AT/ATX Mode jumper
Environment Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 ~ 85°C
Standard Accessory √ 60W AC-DC Adapter x1
√ Power Cord x1
√ Wall Mount Kit
√ DVI-to-VGA adapter x1
√ DIN RAIL x2
√ CD Disk x1
√ Manual x1
√ WIFI antenna (with HBJC365F3AW-2930-B model)
Functional Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
Packing Color Box Dimension: 265(W) x 100 (D) x 200 (H) mm
Gross Weight：1.5KG
Net Weight：1.3KG
Certificate CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
